METAL MILL CLEANUP &
RECOVERY MACHINES
SUPERIOR VACUUM AND FILTRATION
Setting industry standards with superior vacuum and filtration design

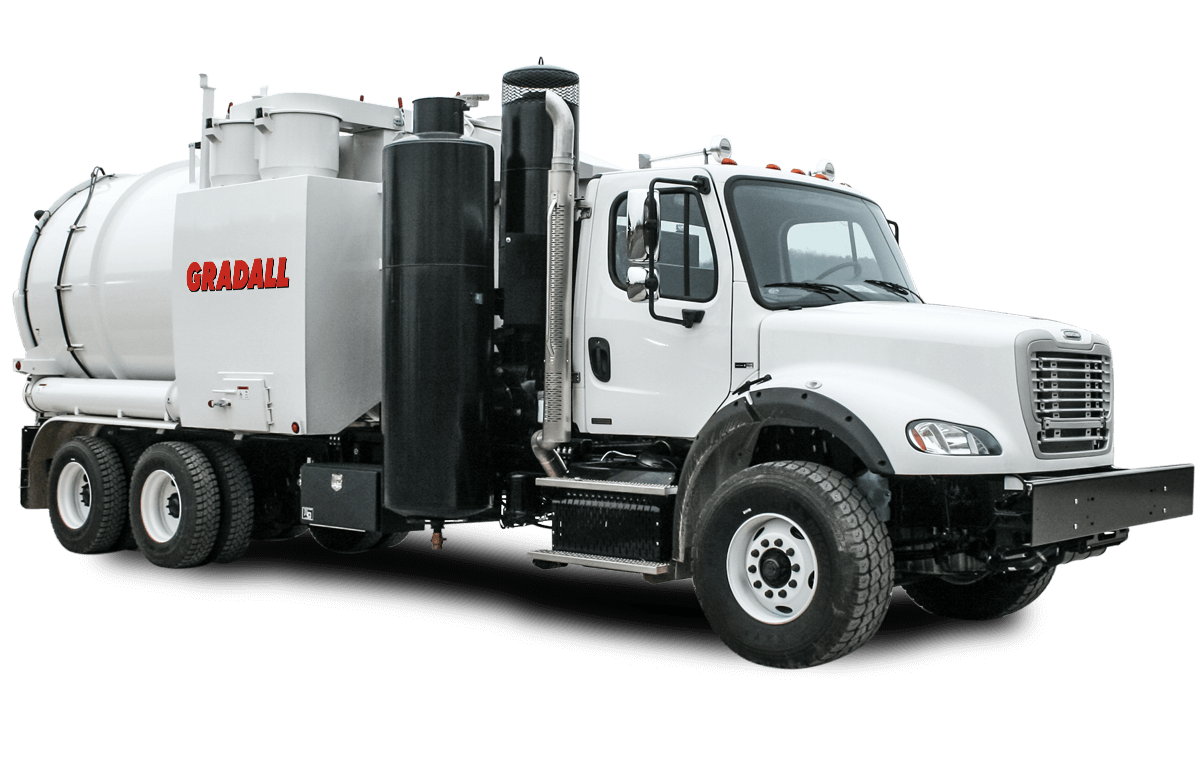

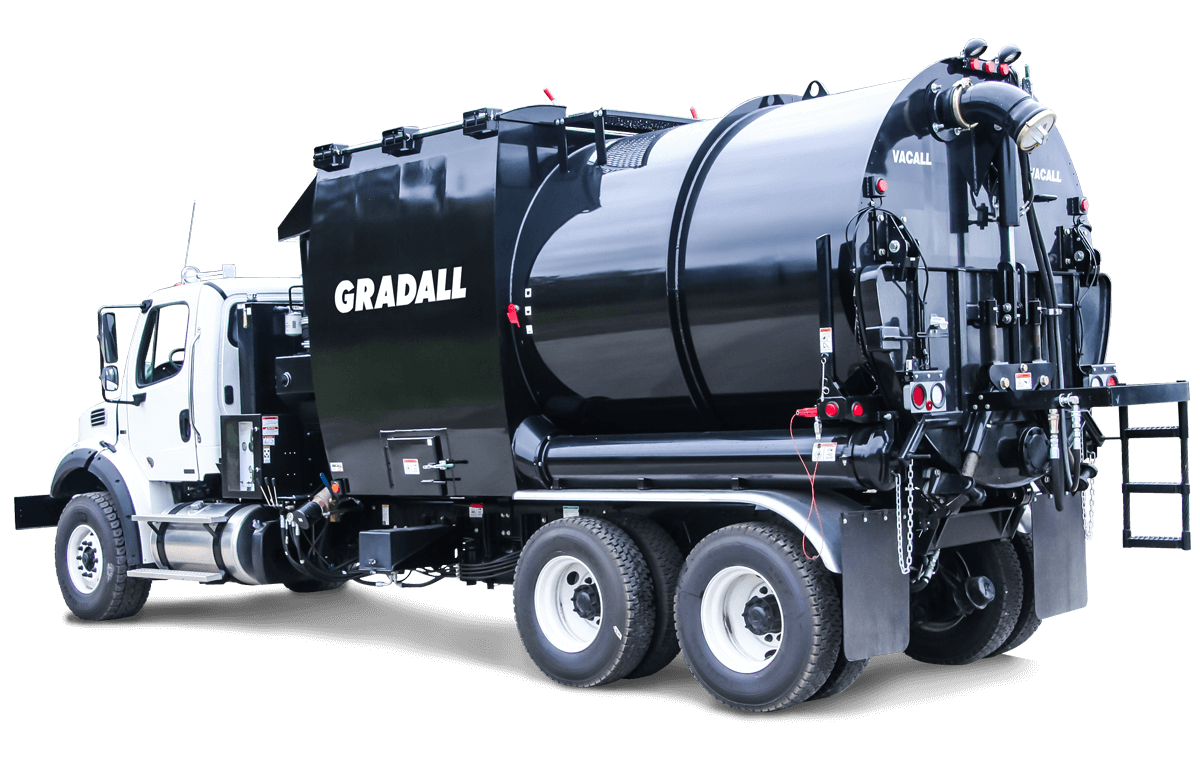

When it comes to material cleanup and removal, the Gradall AllVac industrial vacuum machines deliver more years of higher performance, setting a new long-term productivity standard for the removal of dust, powders, solids, liquids, and thick slurries.
AllVac machines have just one engine, reducing fuel consumption emissions, noise and maintenance. A superior filtration design effectively cleans air before it reaches the heavy-duty blower, capable of creating maximum vacuum at 28” Hg and maximum airflow at 5760 CFM.
FEATURES
FEATURES
SPECIFICATIONS
LITERATURE
- POWER SYSTEM
- POWER SYSTEM
- VACUUM SYSTEM
- FILTRATION SYSTEM
- DEBRIS BODY
DOWNLOAD COMPLETE SPECIFICATIONS (PDF)

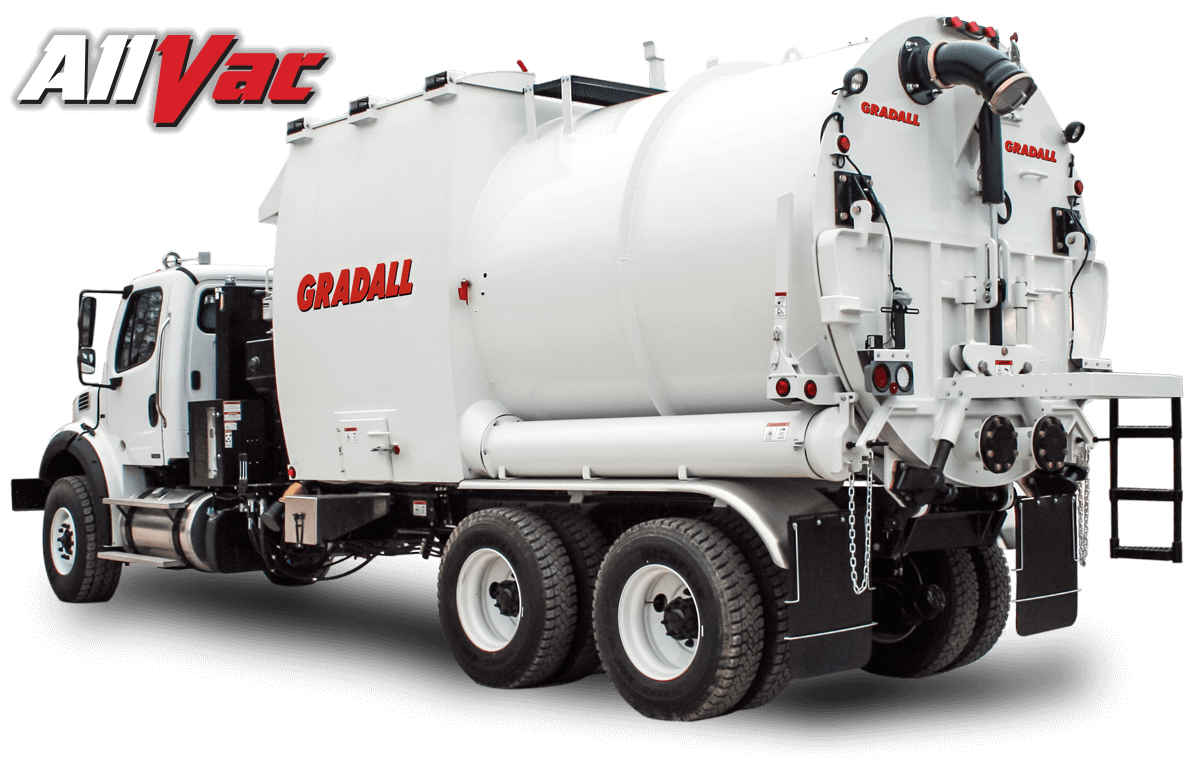

AllVac Industrial Vacuum
- Single engine operation reduces fuel consumption emissions, noise and maintenance

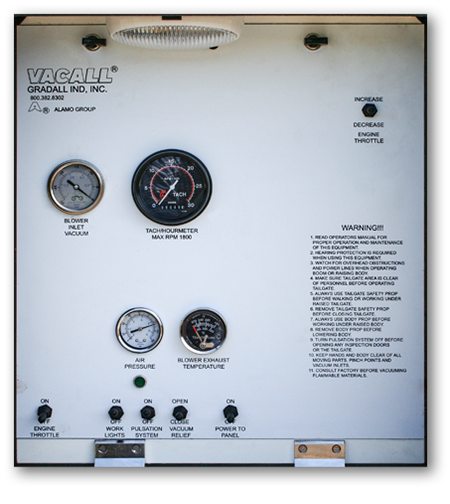

- Engine and blower tachometer
- Emergency engine stop switch
- Fuel consumption meter
- Positive displacement vacuum system creates maximum vacuum at 28" Hg
- Maximum air flow of 5760 CFM
- Transfer case drive with heavy duty construction
- True single-mode filtration via twin cyclone pre-filters, ensuring wet and fine dry materials are removed before reaching the bag house
- Universal snap-ring filter bags maximize the volume of available clean airflow around each filter and make it easier for material to be blasted off effectively
- Air cannon filter cleaning system allows bag pulsation to operate without interruption and resets after every cycle
- High-capacity debris tank with 18 yard3 capacity
- Built with 91” diameter rolled steel plate
- Debris, body, bag house and dump chute are integrated for complete removal of all debris when dumping
- Fail safe tailgate designed for one-man operation
- Smooth, leak-free tailgate movement with simple opening/closing/locking system using one hydraulic cylinder
- Tailgate system features sealed wiring, tail lights, optional ladder and platform
- 40° dump angle can be augmented with optional vibrator
BUILT TO WORK.
BUILT TO LAST.
Manufactured in America with the highest quality standards, Gradall Metal Mill maintenance machines are built for hard work and a long machine life. Backed by the Gradall name, a well-known and respected brand worldwide in the construction industry.
